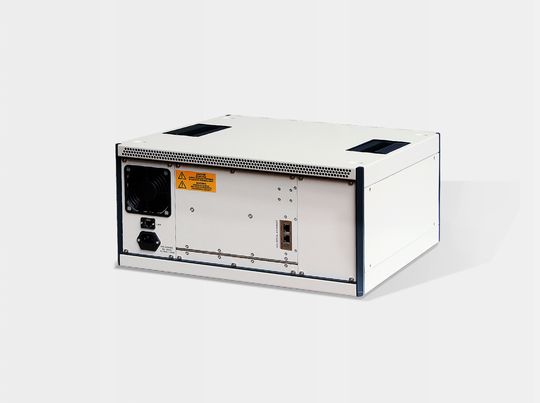

The W 434 PRO allows you to fully integrate electrical testing of your product into automated production processes.

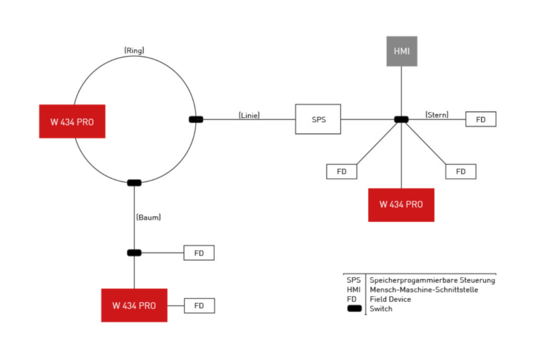

The space-saving test system can be flexibly included in automation systems at the control (I/O) or network level (PROFINET, EtherCat or Modbus). An integrated, robust industrial PC controls the test procedures where performance and safety are very important via the CEETIS / CEETIS smart software. Furthermore, the PC serves as storage location for testing data and protocols. Different combinations of low voltage and/or high voltage generators up to 1,500 Vdc and 1,060 Vac as well as an RLC measuring bridge provide optimal conditions for test applications in the connector manufacturing or automotive industries.
If the test specification changes, deactivated generator options can be enabled at any time via a firmware upgrade.
